Diagram of fuse box (left-hand drive vehicle)

Diagram of fuse box (left-hand drive vehicle)

Some of the items listed are only fitted on certain models or are optional extras.

Please note that the following list, while correct at the time of printing, is subject to alterations. If discrepancies should occur, please refer to the sticker on the inside of the fuse cover for the correct information for your vehicle.

The seats with electrical adjustment are protected by circuit breakers. These reset automatically after a few seconds when the overload has been corrected.

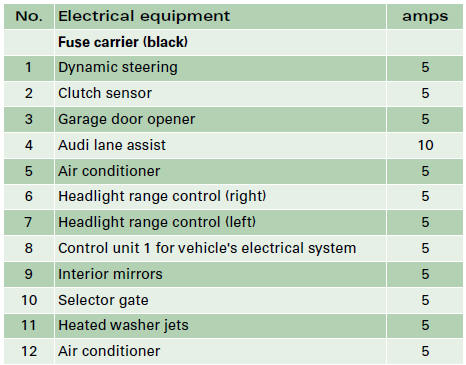

Fuse list

Fuses on the passenger's side
